How to Build a Lactate Biosensor?

An enzymatic biosensor on a platinum wire.

I wrote a research article titled "Exploring Activity-Induced Lactate Pharmacokinetics: Implications for Minimally-Invasive Monitoring" related to this work. Read it onResearchGate

Biosensors are a new type of sensor that detects specific substances, enabling highly sensitive and selective detection of analytes such as glucose, lactate, and cholesterol. As a promising healthcare technology, they offer real-time, non-invasive monitoring (of blood glucose, for instance) and the resulting wearable data helps health and sports professionals build accurate treatment plans and preventive prescriptions. This tutorial walks through building a proof-of-concept enzymatic lactate biosensor, a promising way to monitor muscle fatigue in athletes.

View on GitHub
Microneedle array on the skin
Image from[1]
Smartwatch display illustration

Context

Biosensors are analytical devices that use biological recognition elements to detect and quantify target molecules. The first one was developed in the 1960s by Clark and Lyons, who measured blood glucose for the first time[2]. Since then, biosensors have advanced considerably and spread across healthcare, food safety, environmental monitoring, and drug discovery[3].

After glucose, lactate is the next biomarker likely to be monitored effectively in the coming years. In vivo human studies show clear links between muscle lactate and muscle fatigue[4][5], and muscle lactate is a well-known marker of exercise-induced fatigue[6][7]. Developing non- or minimally-invasive biosensors for continuous lactate monitoring has recently drawn strong interest in wellness and sports[8], since lactate tracking helps athletes tailor their training to their performance[9][10].

Skills & Opportunities

Biosensing research is multidisciplinary, spanning chemistry, biology, and engineering. This tutorial teaches two main skills.

The first is electrochemistry, the study of the relationship between electricity and chemical reactions. The goal here is to measure an electrical signal that mirrors a chemical reaction, while picking up general lab techniques along the way.

The second is electronic programming. The tutorial uses a programmable analog front-end (AFE) board, the LMP91000, which provides a complete signal path between a sensor and a microcontroller and outputs a voltage proportional to the cell current — a first hands-on approach to an engineering development board.

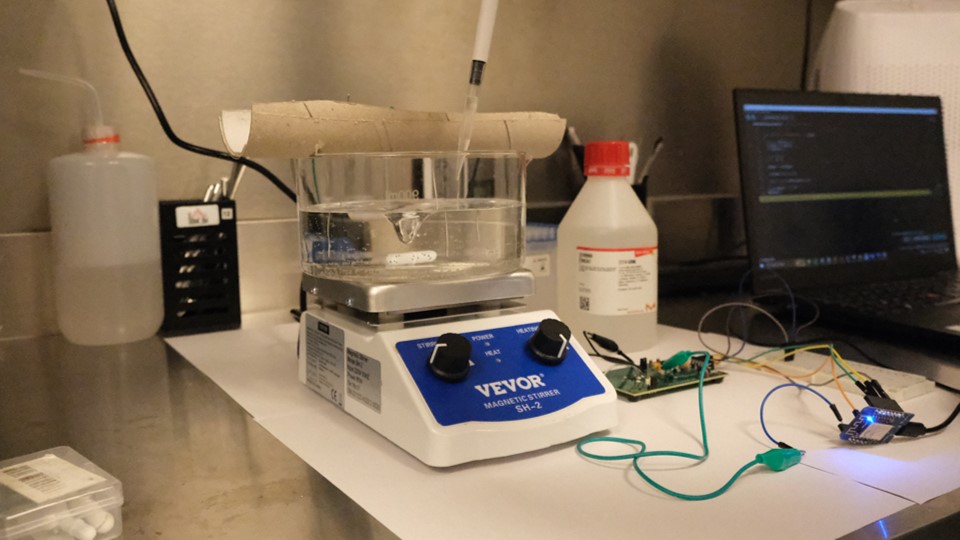

Experiment bench with stirrer, reagents and a laptop
Representation of the lactate oxidase molecule
Representation of the lactate oxidase molecule.

Requirements

This project requires the following:

  • Basic chemical knowledge
  • Notions in C++
  • An LMP91000 AFE from Texas Instruments
  • Lactate Oxidase (LOx)
  • PolyPyrrol (PPy)
  • Sodium Dodecyl Sulfate (SDS), optional
  • A coil of pure platinum wire
  • Lactic acid solution
  • Phosphate Buffer Saline (PBS)
  • Soda
  • A magnetic stirrer
  • A 1 ml electronic micropipette
  • A wash bottle
  • A 2 ml Eppendorf tube
  • One 500 ml beaker
  • Crocodile clips
  • Iron wires for electronics

Biosensor Principles

Immobilization Matrix

Functionalizing a biosensor means immobilizing the enzyme on a transducer surface[11]. The four main methods are (1) non-covalent adsorption and deposition, (2) physical entrapment, (3) covalent attachment, and (4) bio-conjugation. This tutorial uses physical entrapment, including the enzyme within a polymer network[12].

Enzyme

The most common recognition elements for L-lactate biosensors are lactate dehydrogenase (LDH) and lactate oxidase (LOx)[13]. The enzyme catalyzes the oxidation of lactate into pyruvate in dissolved oxygen, producing hydrogen peroxide. Being electrochemically active, the hydrogen peroxide can be reduced or oxidized to yield a current proportional to the lactate concentration[14]. Both enzymes involve simple reactions and allow for a fairly simple sensor design[15]; this tutorial uses LOx for its lower cost.

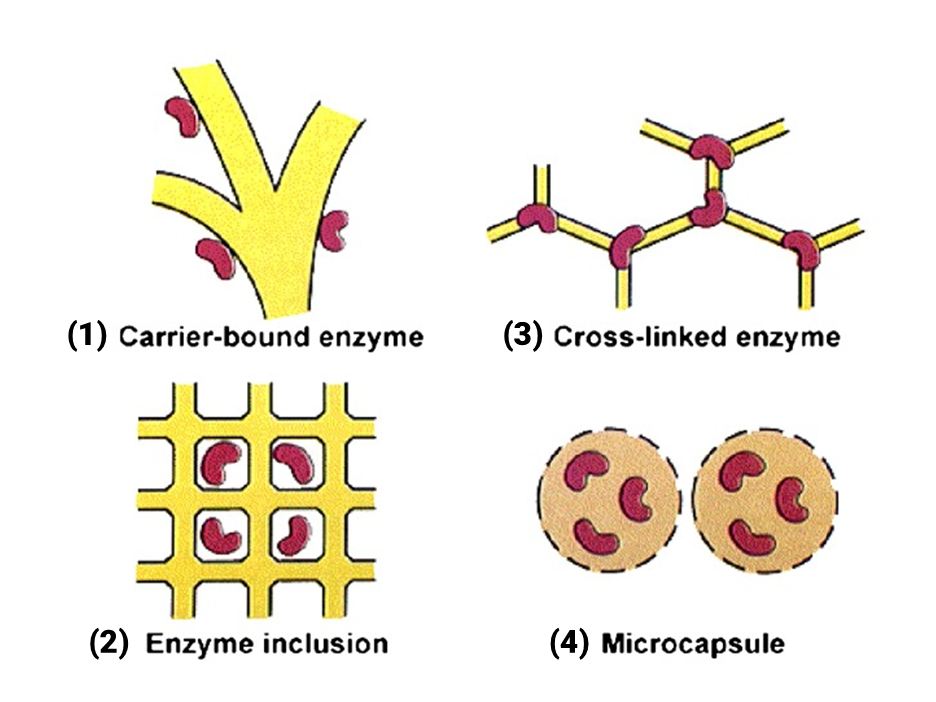

Diagrams of enzyme immobilization methods
Some methods used for enzyme immobilization. From[12].

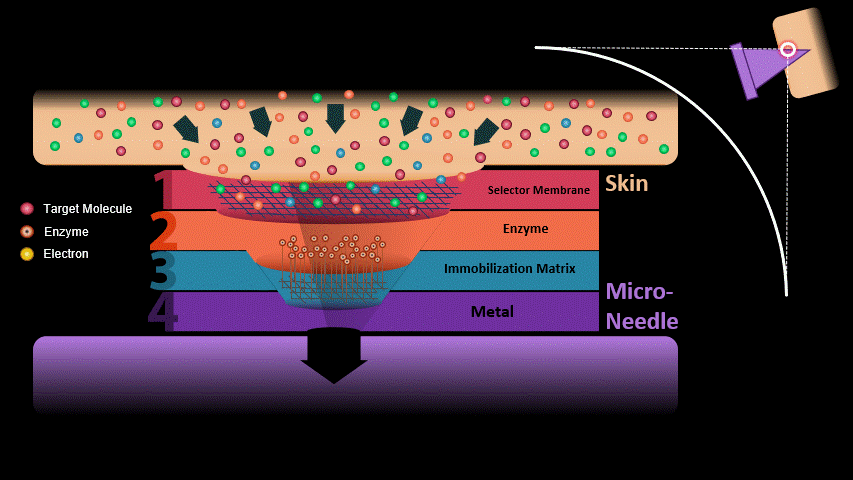

Animated illustration of the biosensor working principle through the skin

Membrane

The outer selector membrane has two roles:

  • filtering out interferents, biomolecules that could interact with the enzyme and distort the signal;
  • regulating the concentration of the target molecule reaching the enzyme, so the biosensor does not run short of oxygen and saturate[16].

This tutorial skips membrane design: its two functions are not required for in vitro testing, and the membrane also tends to reduce the biosensor's sensitivity.

Tutorial

1. Biosensor Functionalization

1.1. Prepare the platinum wire. Cut the platinum wire to a 5-centimeter length.

1.2. Prepare the PBS solution. Dilute PBS powder in 1 liter of distilled water and fill a wash bottle with it.

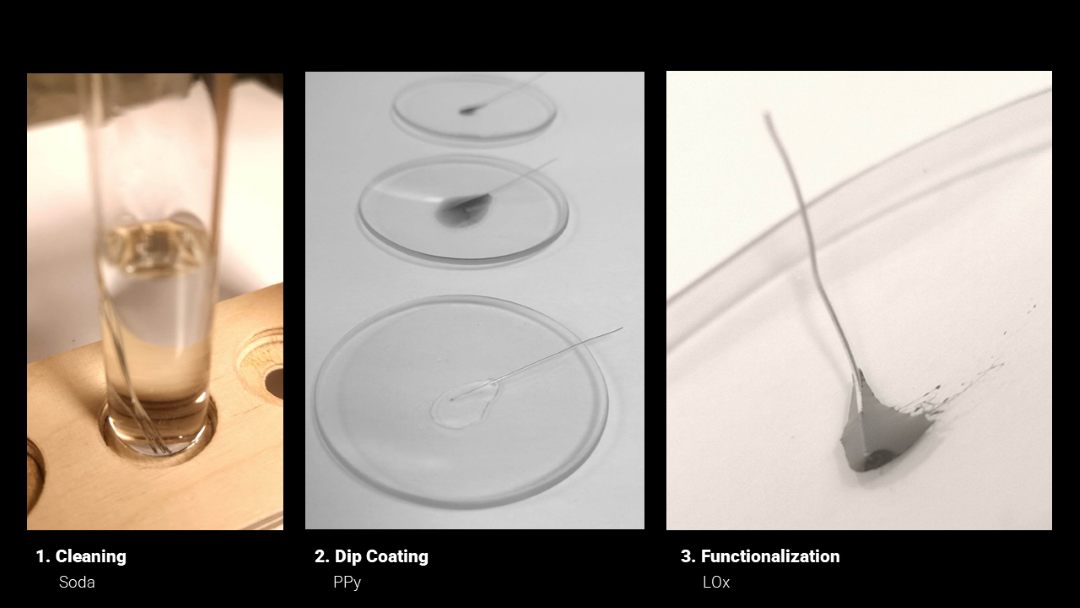

Cleaning, dip coating and functionalization stages of the platinum wire

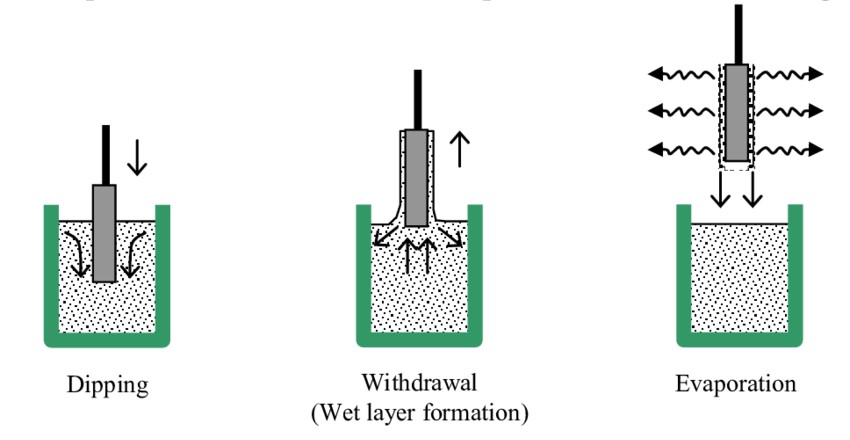

Stages of the dip coating process
Stages of the dip coating process. From[22].

1.3. Clean the platinum wire. Dissolve 0.8 g of solid soda in a 100 ml beaker of distilled water with a stirrer. Leave the wires in the soda solution for 10 minutes, remove them, clean thoroughly with ethanol, and dry at room temperature.

1.4. Prepare the polypyrrole solution. Weigh 0.4 g of PPy powder into a beaker with 20 ml of acetone. Stir for 30 minutes at room temperature until fully dissolved, then add 80 ml of distilled water and stir for 30 more minutes to obtain a homogeneous PPy solution.

1.5. Dip-coat the platinum wire with PPy. Dip the cleaned wire into the PPy solution and withdraw it slowly at about 2 cm/min for 2 minutes (use a stopwatch and ruler if you have no dip coater, or leave it immersed motionless). Dry the wire at 60 °C in an oven for 30 minutes.

1.6. Prepare the functionalization solution. Pour 2 µl of LOx into a 2 ml Eppendorf tube with 2 ml of PBS using a micropipette. Close and shake vigorously to homogenize.

1.7. Immobilize lactate oxidase by entrapment. Pour 0.2 ml of the functionalization solution onto the last 2 cm of the PPy-coated wire to immerse it. Leave for 6–12 hours at room temperature; the enzyme becomes entrapped within the PPy layer.

1.8. Wash the immobilized wire. Remove the wire from the LOx solution and rinse it with PBS.

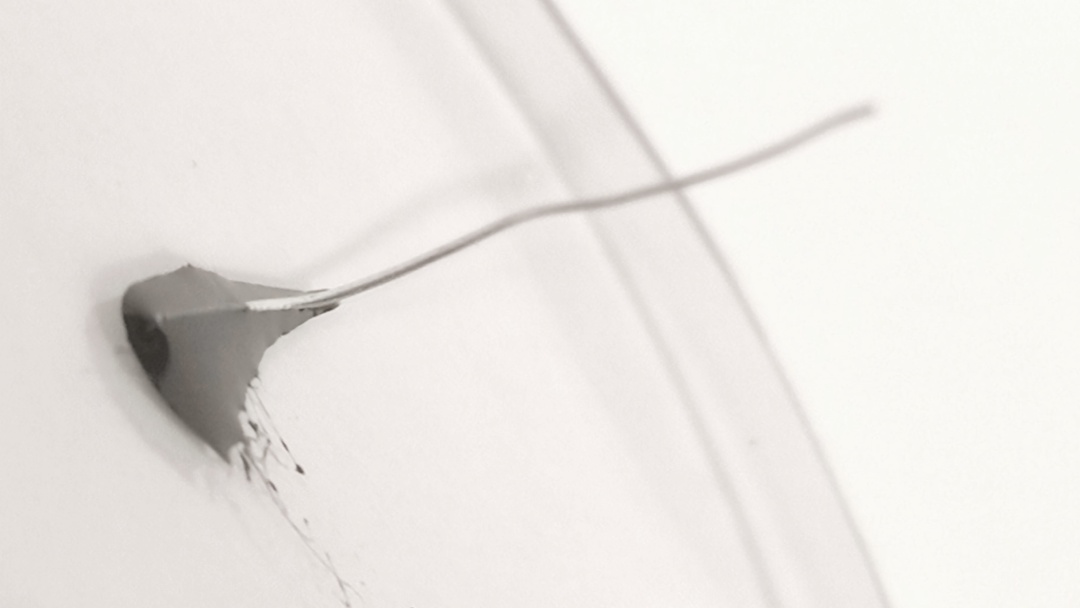

Close-up of the lactate oxidase functionalized platinum wire

2. LMP91000 Programming

Electrochemical biosensor tests require a potentiostat — an electronic circuit that applies a potential to a working electrode (WE)[23]. By applying the molecule's oxidation potential (+650 mV for lactate), the enzyme catalyzes its oxidation, producing one or more electrons. The resulting current flows through the WE to the circuitry and a counter electrode (CE), where op-amps amplify it to the microampere range. Chronoamperometry (CA) applies a fixed potential at the WE and measures current over time[24], usually needing about an hour of calibration until the WE–CE potential stabilizes. The current is proportional to the lactate concentration at the WE surface. The LMP91000 is a popular potentiostat board for micro-power electrochemical sensing[25].

2.1. Prepare the electrodes. Solder three wires to the CE, WE, and RE.

2.2. Wiring. Connect 3V3, GND, SDA, and CLK between the LMP and the WeMos. Using an alligator clip, connect the LMP's Vout pin to the WeMos's A0 pin.

2.3. Download the code. Get the code from the BioWatch GitHub, run the chronoamperometry code, and check with a potentiometer that the board works.

#Top Pins#Bottom Pins
1516SCS2
13GPSI 3.3V14GPSI 5V
11SDA12SCL
9CLK10GND
7MOSI8MEMB INT
5MISO6DEV INT
3SCK4GND
1SCS12GND

LMP91000 pinout.

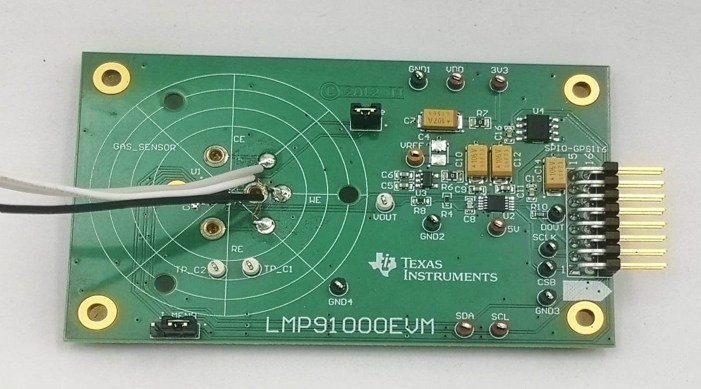

LMP91000 development board

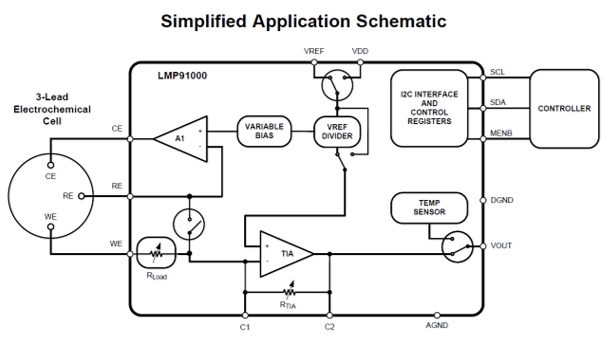

Simplified application schematic of the LMP91000
Simplified application schematic of the LMP91000. From[25].

3. Experimentation

3.1. Connect the electrodes. Connect the functionalized platinum wire to the WE of the LMP91000 with an alligator clip. Cut and connect two more platinum wires to the CE and RE the same way, then check the connections with a voltmeter.

3.2. Set up the electrochemical cell. Fill a clean beaker with 400 ml of PBS and stir it constantly at medium speed with a magnetic stirrer.

3.3. Place the electrodes. Insert the platinum wires into the cell and start the chronoamperometry code. Check that the values are consistent, then wait 3600 seconds.

3.4. Inject lactate. Add 160 µl of lactic acid with a propette to reach a 4 mM solution. Repeat 4 times every 5 minutes, up to 20 mM.

3.5. Exploit the results. Copy the data from the console and paste it into a spreadsheet. Split time and current into two columns using the "," separator, and convert full stops into commas.

3.6. Characterize the sensor. Plot the inputs against time, identify the injections, and compute the sensor's sensitivity and linearity.

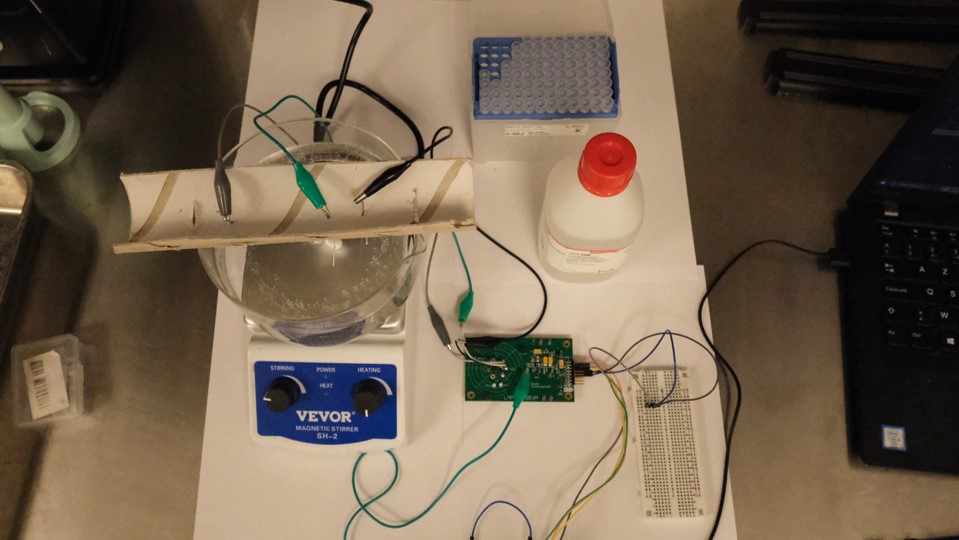

Top view of the experimental setup

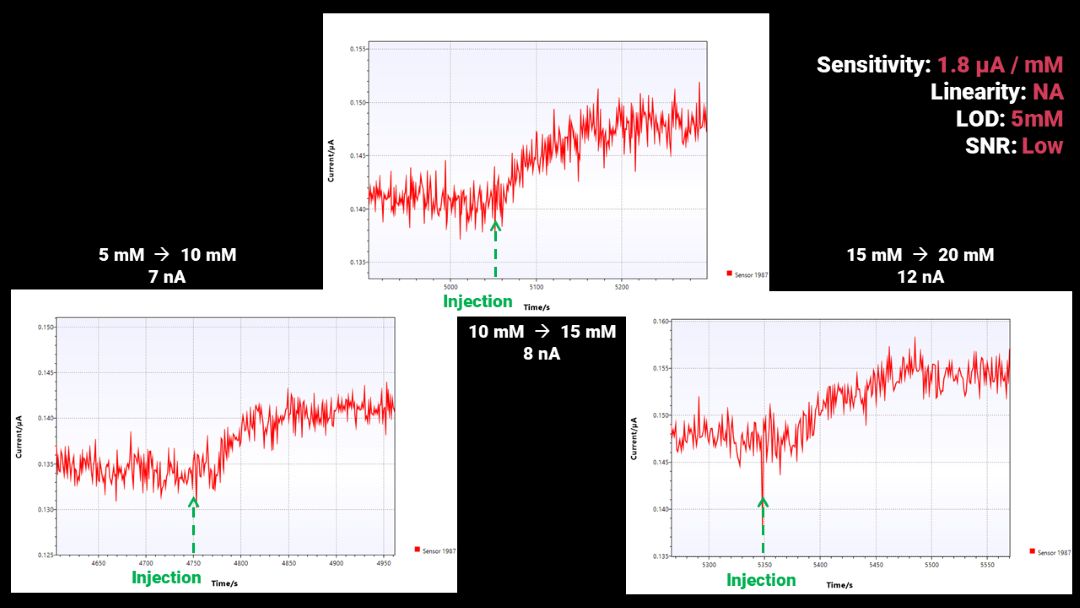

Chronoamperometry experiment results

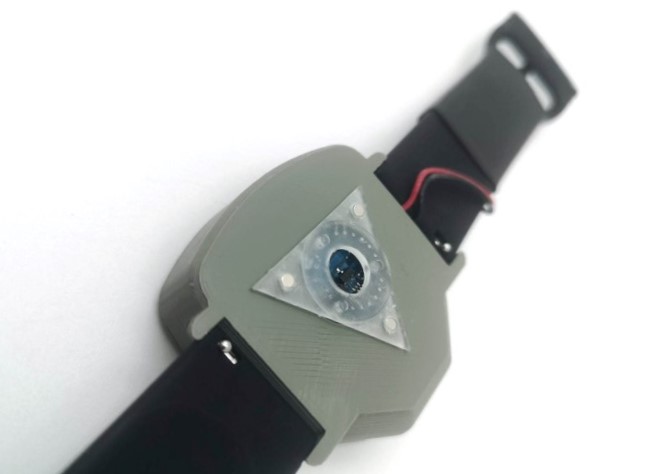

Microneedles module mounted on the BioWatch

Conclusion

This tutorial designs a simple lactate biosensor from scratch using the most accessible equipment possible. The sensors built and tested perform poorly, likely because the non-optimized wiring lets in strong signal perturbations. Future work will test them with a commercial potentiostat. The platinum wire could also be replaced by micro-needles coated with platinum paste, which could then be integrated into the BioWatch.
